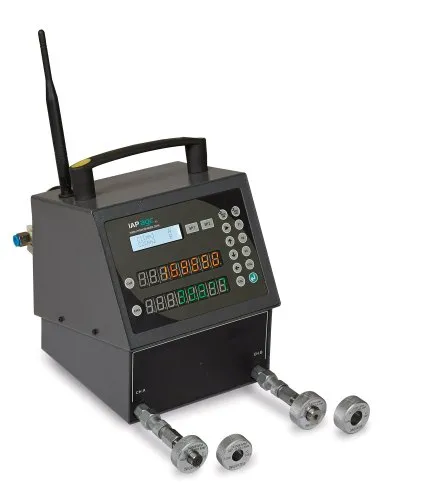

Digital Air Gauge Innovative

Display TypeDigital
Country of OriginMade in India
Deal InNew
Data storage7500
Resolution0.005,0.001,0.0005,0.0001 mm
Program storage Capacity25
  • Single/Twin/Three/Four channels Air based gauge.
  • Separate seven segment bicolor displays for each channel.
  • 16*2 character function display and bicolor 7 segment display for Accept,Reject rework.
  • Tolerance setting:change in display color for accept (Green)and reject(Red)and rework(Yellow)job conditions on seven segment display.
  • Auto measurement on plug insertion.
  • 25 number of programs can be stored.
  • Buzzer sound for out of range
  • Multiple Channels Calibration at Single go.
  • Potential free relay for Accept,Reject,Rework for each channel.
  • Support various expression mode.min-max,max,min,average,dynamic and static.
  • Optional WIFI/Ethernet/USB,Pendrive(suitable for industry 4.0)
  • Data storage of 7500 jobs possible.
  • Display can be set to inch or mm.
  • Resolution 0.005,0.001,0.0005,0.0001 mm.
  • ID, OD selection.
  • Absolute or Increment measurement mode.
  • Auto-Air cut off.
  • Optional:
  1. Tower Lamp Indication.
  2. Input air level low indication optional.
